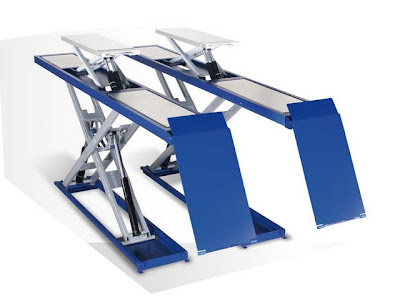

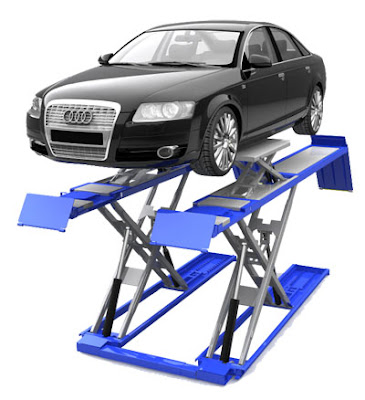

Platform Scissor Lift

Low profile design with integrated lifting table.
MHS² applied on both main scissor and lifting table.
Cam lever startup device can lower maximum pressure by 1/3. Lower working
pressure protects hydraulic system of the lift from possible damage.
Available with 3 different models: 4.4 meter, 4.8 meter and 5.2 meter
Optional Alignment kit with air locking sliding plate for wheel service works
Extendable wheel free lifting table can adopt variable vehicles

The SLA309 platform scissor lift is a good choice for you!

Customers worldwide are looking for a new lift that can be simple and reliable while still be able to meet or exceed all industry standard and market requirement. As your long term partner and a world class lifting solution provide, JIG is proud to announce MHS² ® lifting technology.

Muti-channel Hydraulic Synchronization and Safety system by incorporate hydraulic synchronization, hydraulic safety lock, Muti-channel cross backup technology can bring you;

Ultimate safety:
Thanks to Bosch Rexroth parachute valve build in to cylinder system, full time full cycle protection is given at a real-time miner. even under a unlikely event that any part of the Dual or muti channel cross balance system damaged or dysfunction, the spare channel can always protects your safety as you expected.

Lower ownership cost:
Thanks to the hydraulic direct drive structure and hydraulic balance system, by eliminating moving parts like balance cable & pulley, lifting chain and roller or spindle & nut all moving parts remain in the lift will be self maintain cylinders and power pack. This can save user tremendous amount of cost which after years of use may far exceed the cost of the lift itself.
Due to the ultimate safety protection of MHS²,mechanical safety and unlocking device is no longer needed. Cable and chain are removed. MHS² also doesn't request slack detection device. All those adding together make it possible for a simple electrical control circuit which request 70% less parts, connectors and wires. Which means less possibility for malfunction and repair.
With a simple structure and electrical design, installation time can be reduced to 1/3 of what a traditional lift would need.

Comfort to use
Mechanical lock used on traditional hydraulic lift request rise before unlocking. This created confusion for many users who had mechanical lift before. Also under a limited roof height, this will cause lost of working height many people need. MHS² bring hydraulic safety lock in to lifting equipment, so lift can be lowered with full protection at any position without need of re-rising. When electrical power supply failure happened, a traditional hydraulic lift will need extra equipment like hand pump or jack to be able to unlock and lower down. Mechanical lift will need even more works to retrieve raised car. With MHS² unique emergency lowering device, your will be able to manage lower down the lift without any extra works.

Feature

Low profile design with integrated lifting table.
MHS² applied on both main scissor and lifting table.
Cam lever startup device can lower maximum pressure by 1/3. Lower working
pressure protects hydraulic system of the lift from possible damage.
Available with 3 different models: 4.4 meter, 4.8 meter and 5.2 meter
Optional Alignment kit with air locking sliding plate for wheel service works
Extendable wheel free lifting table can adopt variable vehicles
